Building a Rain Garden

At the Dungeness River Nature Center

A rain garden is a bioretention system characterized by a shallow, flat bottomed, bowl-shaped landscape feature filled with a special soil mix.

Its purpose is to collect, filter, and infiltrate stormwater runoff from roofs and pavements. Typically, an engineer isn’t required to do the design work which means rain gardens can be installed by homeowners with a basic level of training.

A demonstration rain garden was built in 2021 at the newly expanded Dungeness River Nature Center in Sequim, Washington. This rain garden will protect the salmon-bearing Dungeness River by absorbing and filtering stormwater runoff from the roof, paved patio, and sidewalks.

Here’s the story of the building of the rain garden, from start to finish. Read the whole thing or jump to your area of interest: planning and design, construction, planting and mulching, maintenance or build your own. Only have 30 seconds? Watch the volunteers planting the garden in this time-lapse video.

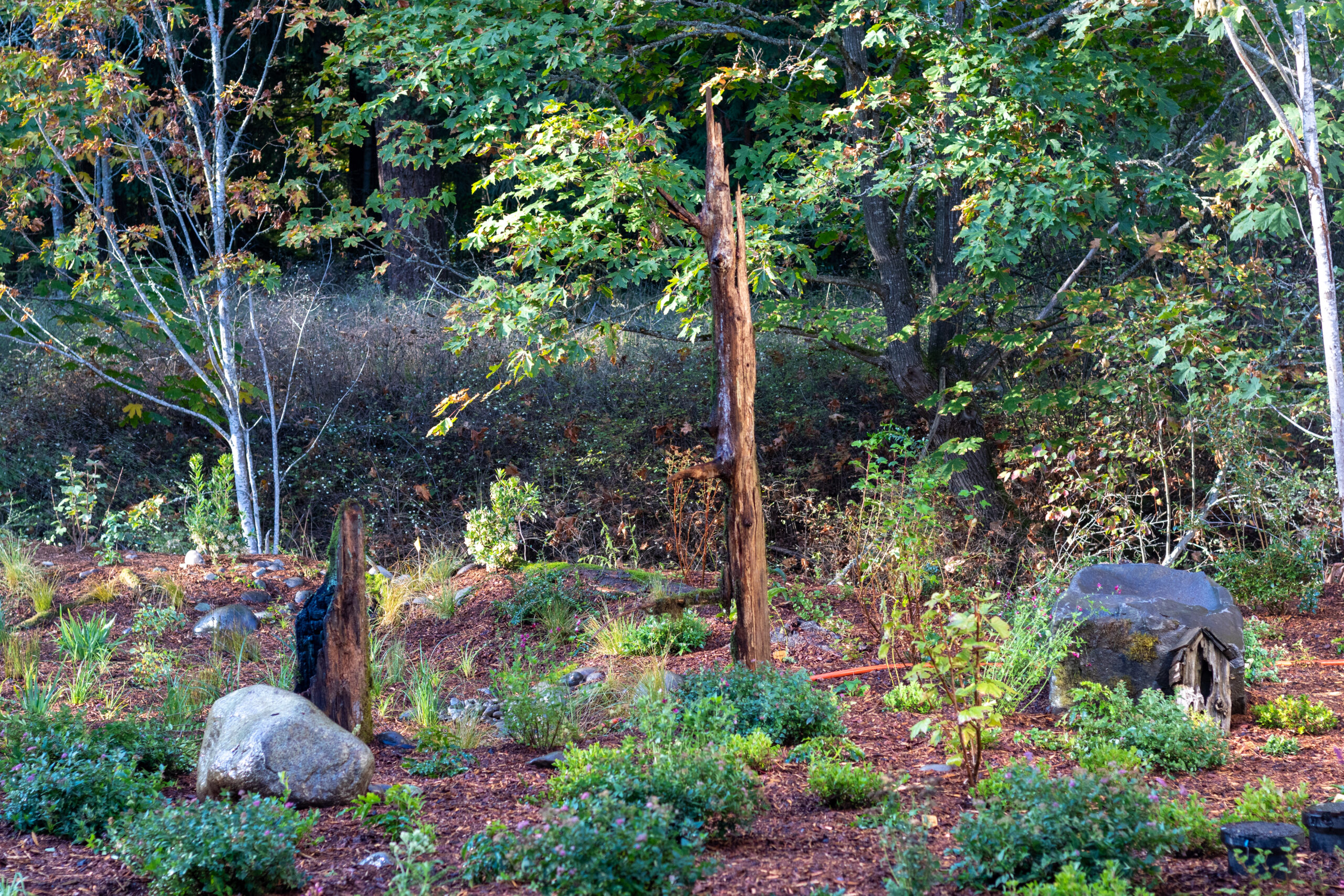

Rain garden after planting
Completed demonstration rain garden at the Dungeness River Nature Center in Sequim, Washington. Photo Ian Shriner.

About the Location

Vicinity map showing location of a demonstration rain garden at 1943 W Hendrickson Rd, Sequim, WA. Google images 2022.

The Dungeness River Nature Center is located on the Olympic Peninsula on land owned by the Jamestown S’Klallam Tribe. A non-profit organization manages the Center, partnering with the Tribe, the Olympic Peninsula Audubon Society, and National Audubon. The Center is adjacent to the Olympic Discovery Trail and features exhibits, low-bank access to the Dungeness River, and a historic railroad bridge.

In 2022, the Center expanded, increasing the size of the building from
1,600 square feet to more than 7,400 square feet. Patios and sidewalks were installed along with a new entry road and a 75-car parking lot with an engineered stormwater management system. The Tribe and partners elected to treat remaining stormwater runoff with a rain garden.

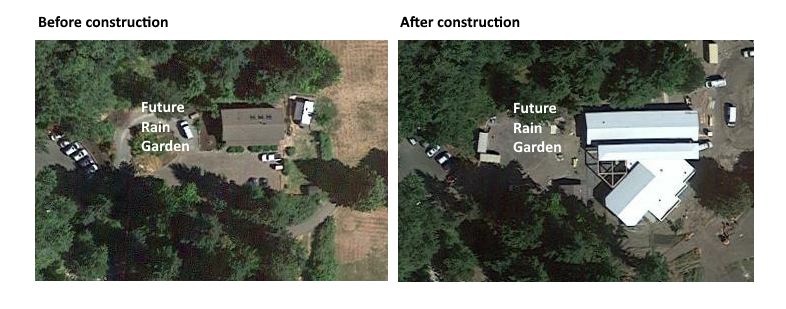

Aerial views of a building and parking before (L) and same photo with expanded building (R)
This shows a side-by-side comparison of the building footprint, before and after construction, prior to building the rain garden. Google images 2017 and 2022.

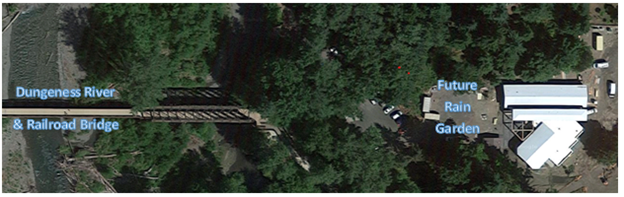

Aerial photo of the newly constructed River Center, Dungeness River and Railroad Bridge with location of future rain garden marked.
Aerial image of the expanded River Center prior to rain garden installation, showing the proximity of the river. Google images July 2021.
Image of rain garden interpretive sign
This interpretive sign is installed at the site to provide more information when you visit. Sign design and header by Bud Turner, Jamestown S’Klallam Tribe. Graphics created by Cameron Dunn.

Planning and Design

Members of the rain garden planning team began meeting in July 2021. Courtesy WSU Extension.

WSU Extension partnered with the Dungeness River Nature Center and the Jamestown S’Klallam Tribe to build a rain garden as part of the Center’s building expansion. The rain garden will protect the Dungeness River by absorbing and filtering stormwater runoff from the new roof, paved patio, and sidewalks.

The team determined overarching goals for the garden including:

  • building a functional rain garden to treat stormwater runoff
  • providing an opportunity to educate visitors and encourage them to consider building a residential rain garden
  • creating habitat for wildlife including pollinators.

The rain garden site was used as a staging area for construction equipment during the building of the new nature center and was heavily compacted. But, within a few months it was transformed into a beautiful rain garden.

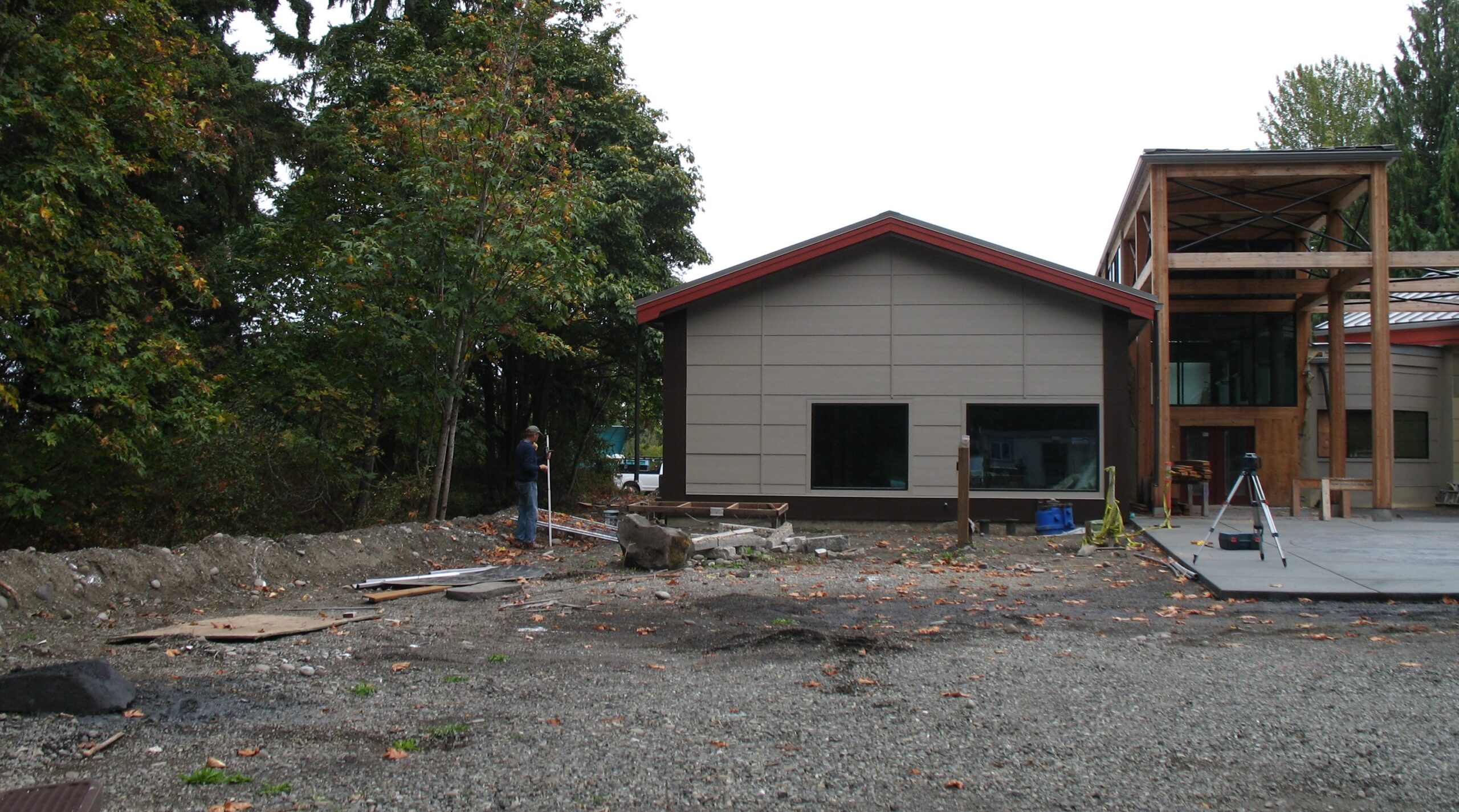

Area before construction of rain garden.

The rain garden was designed following the steps in the Rain Garden Handbook for Western Washington (Handbook) including:

  • determining the “contributing area” that would drain to the rain garden
  • testing the soil and digging a perk hole to test the infiltration at the site
  • determining the ponding depth and size of the garden
  • developing a design for the rain garden shape and size
  • locating the inflows and overflow location

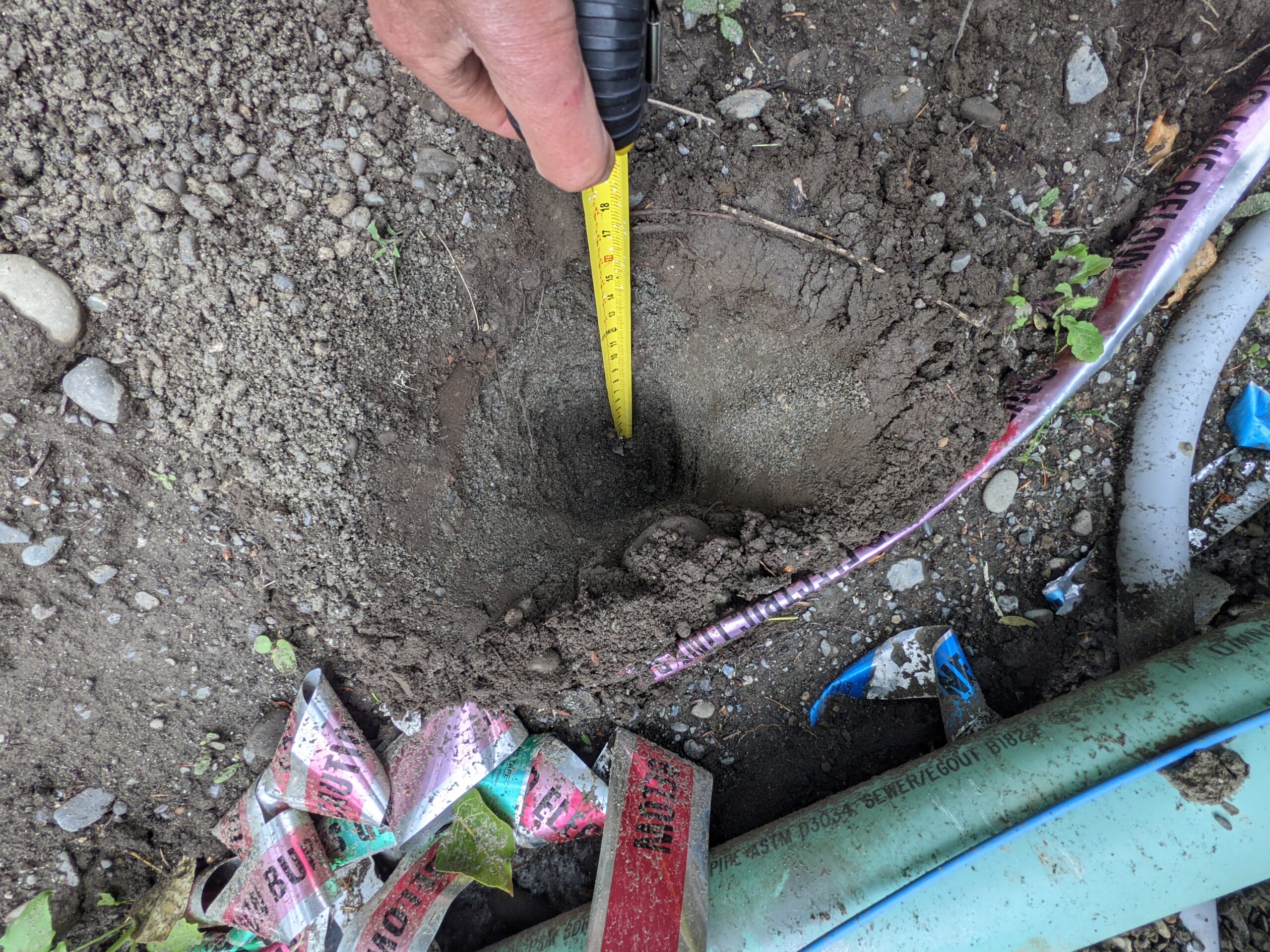

Soil testing

The garden was designed to manage approximately 40,000 gallons of stormwater runoff a year from approximately 5,900 square feet of hard surfaces and the roof. Stormwater is directed from the roof and patios to the 650 square foot garden through three inflow pipes and from direct flow from hard surfaces. The water is absorbed, usually within 48-72 hours.

An overflow ditch allows water to leave the garden, in the rare event of a storm that exceeds the garden’s capacity. The other component of the site’s stormwater management plan is an engineered, underground system in the new parking lot on the east side of the building that collects rooftop, sidewalk, and parking lot runoff.

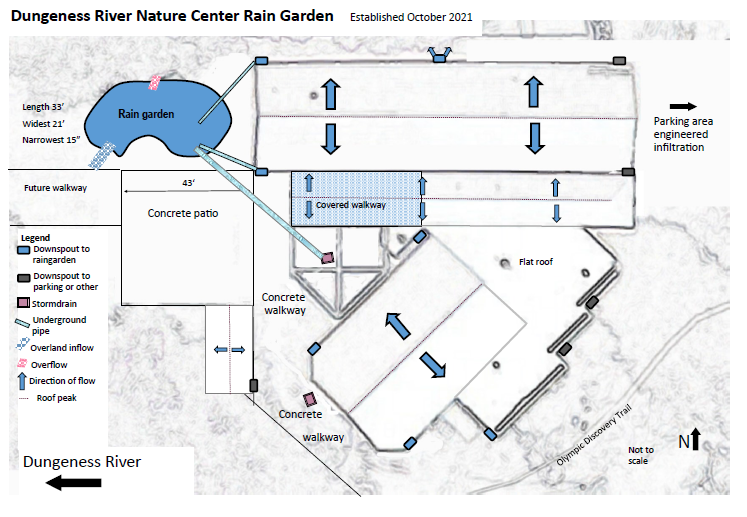

The rain garden plan showing contributing areas. Base map Google images. Diagram courtesy WSU Extension.

Construction

Preparation for constructing the rain garden began by outlining the rain garden edge and marking the inflow and overflow. Following the Raingarden Handbook, next steps included:

  • excavating the rain garden
  • flattening and leveling the garden bottom
  • filling with a rain garden soil mixture

Excavation work began on July 29, 2021 and was completed in a day and a half. The rocky and heavily compacted soil was excavated to a depth of about three feet by the Tribe’s Jamestown Excavation company. The bottom of the rain garden was flattened and leveled. A mix of soil and compost was added to the site to a depth of approximately 18 inches – until the inflow pipes were level with the bottom of the rain garden. A rock-lined overflow was constructed in case the water overflows.

Construction sequence

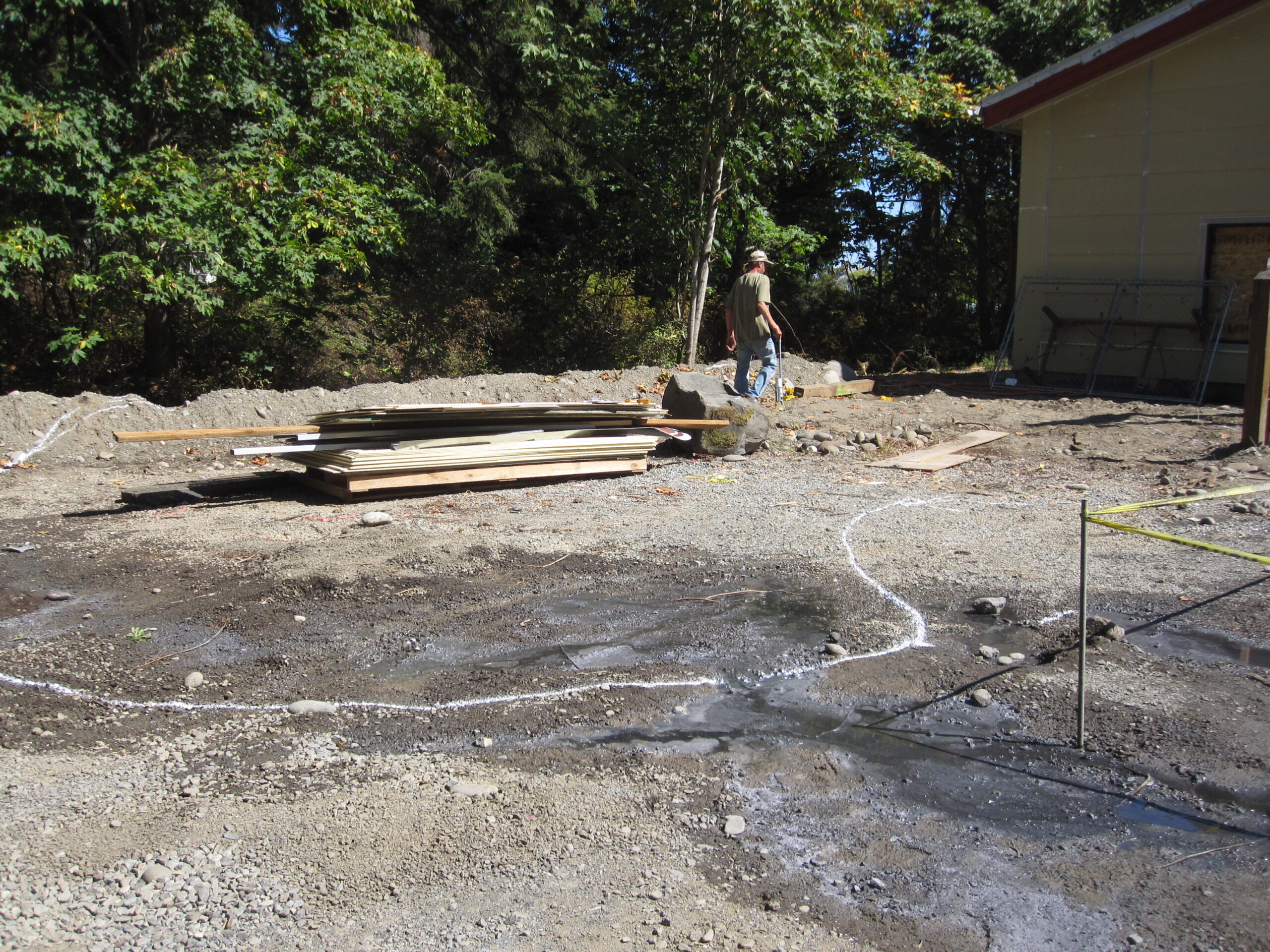

Outlining the edge of the garden

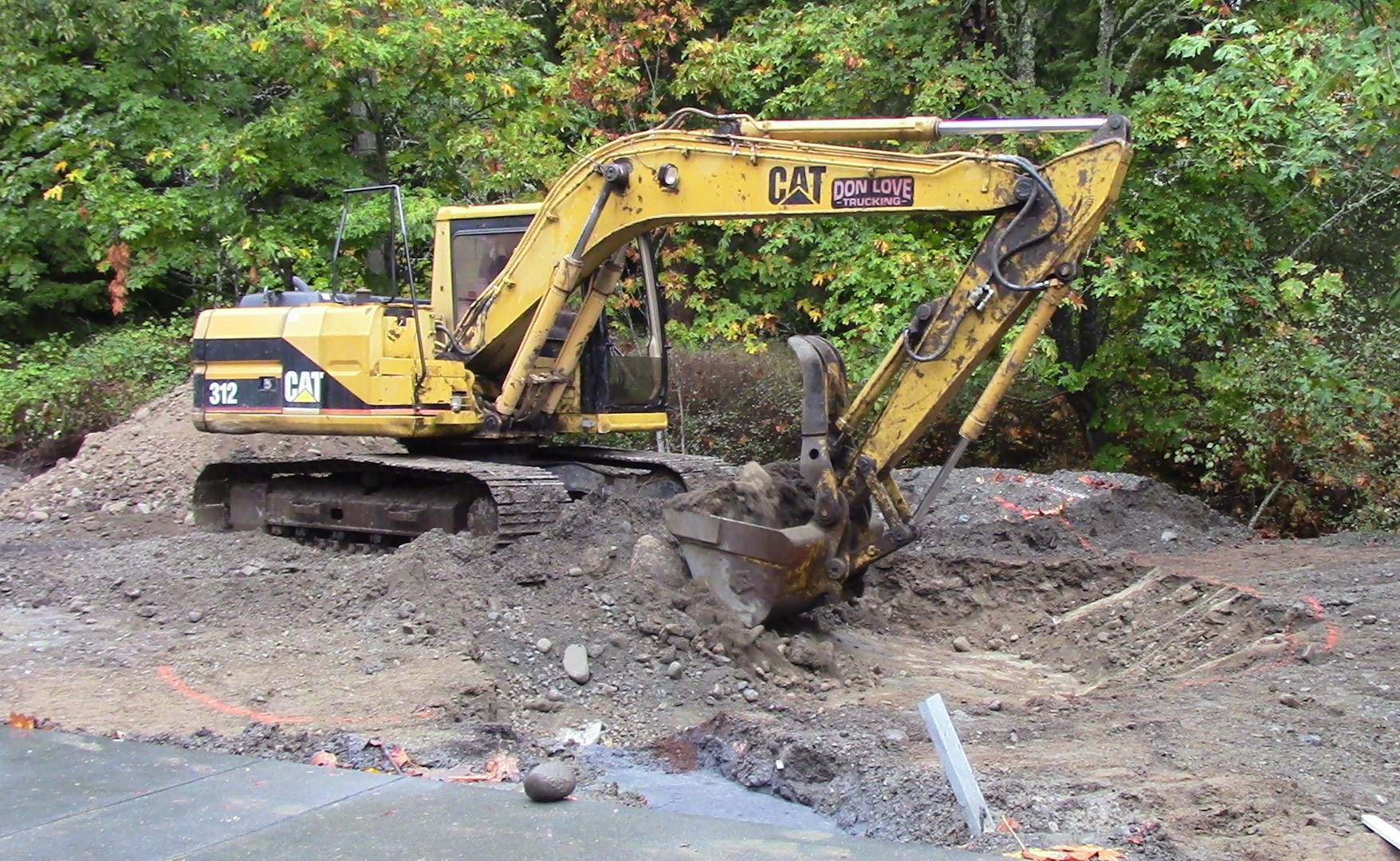

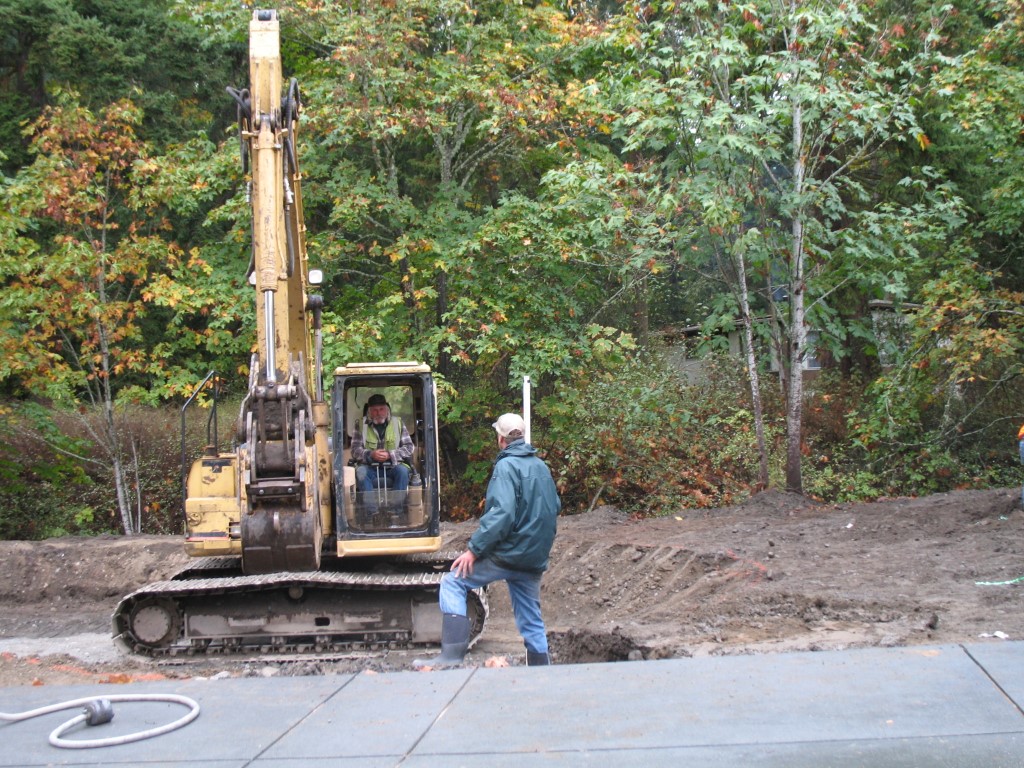

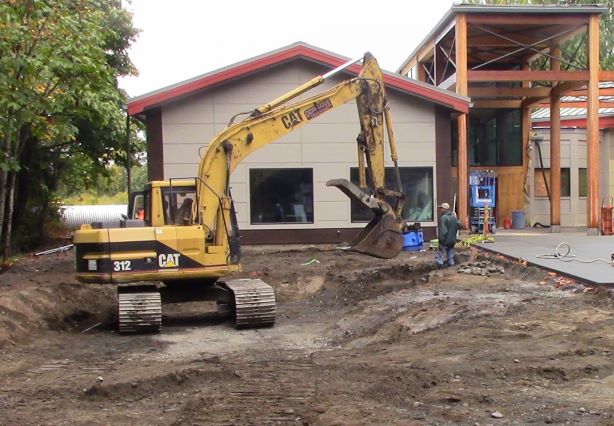

Excavation begins!

Checking the depth

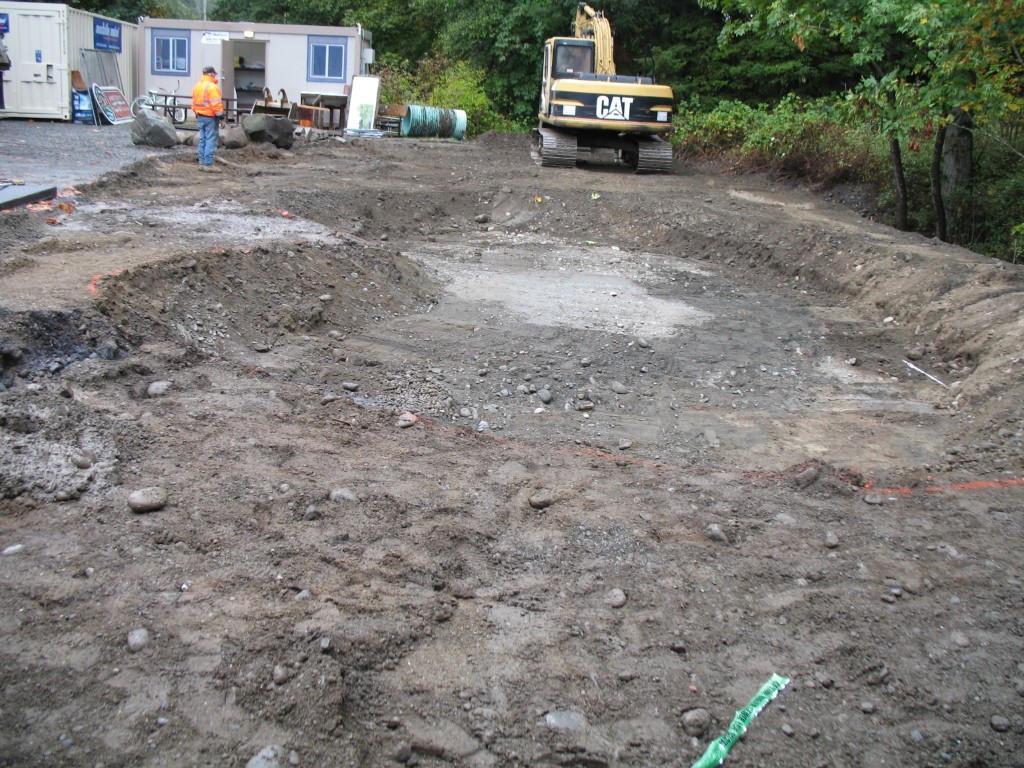

Excavation continues. View looking west

Checking the depth again

Creating the inflow

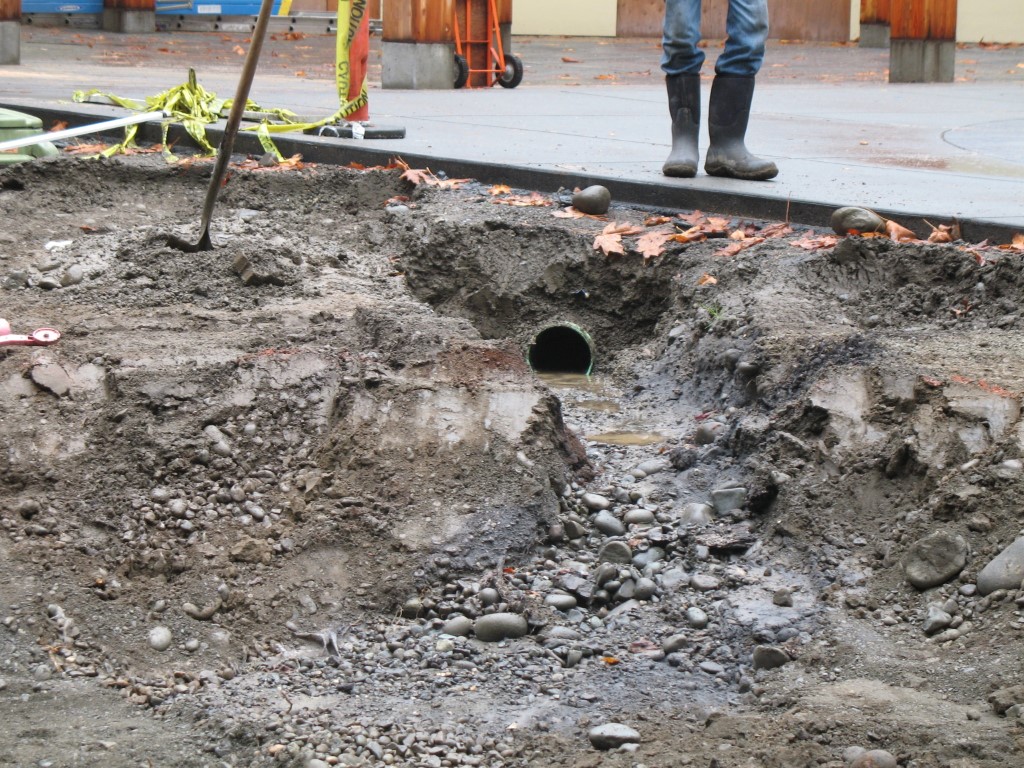

Inflow pipe before extension is added

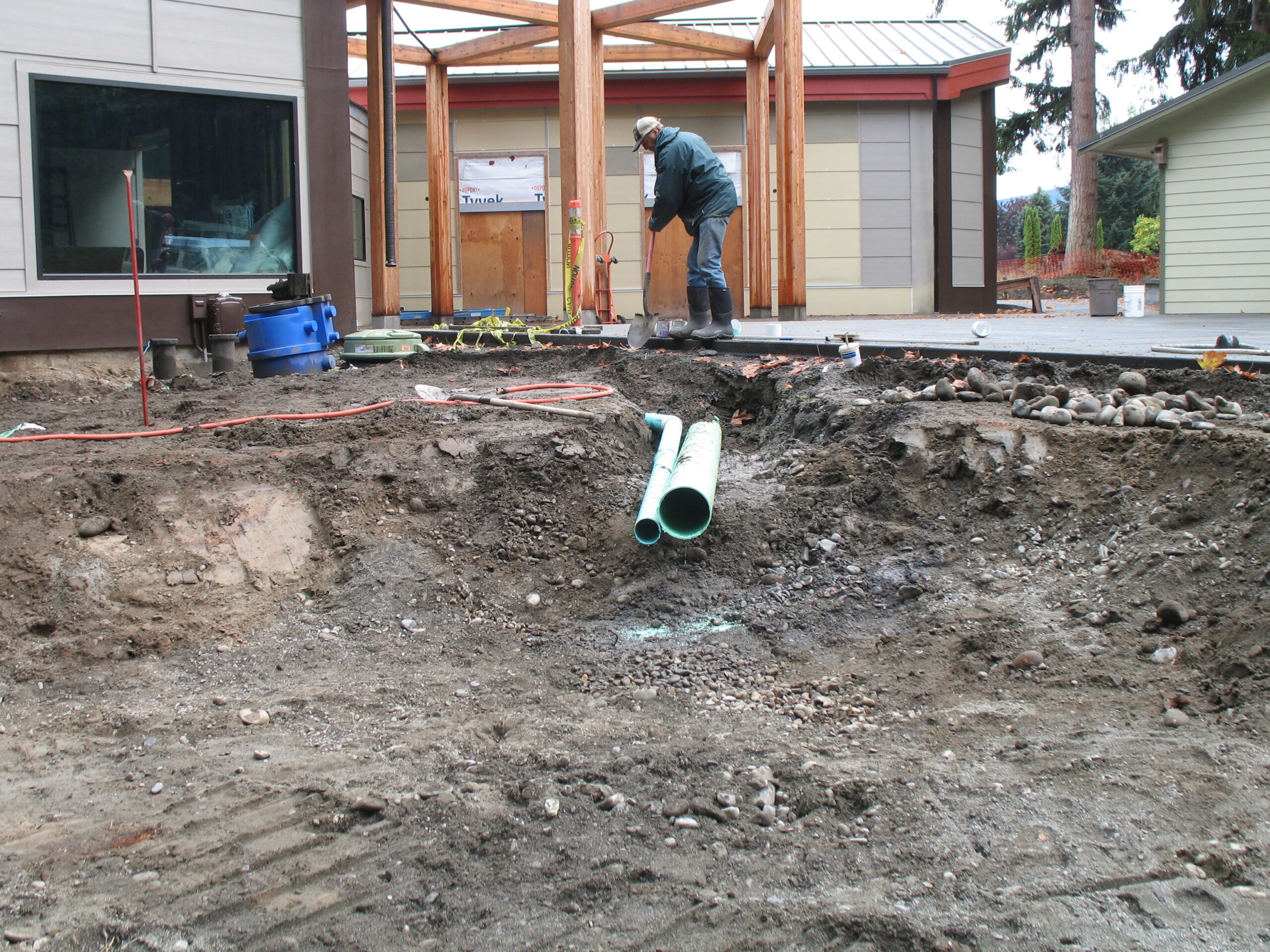

Inflow extension

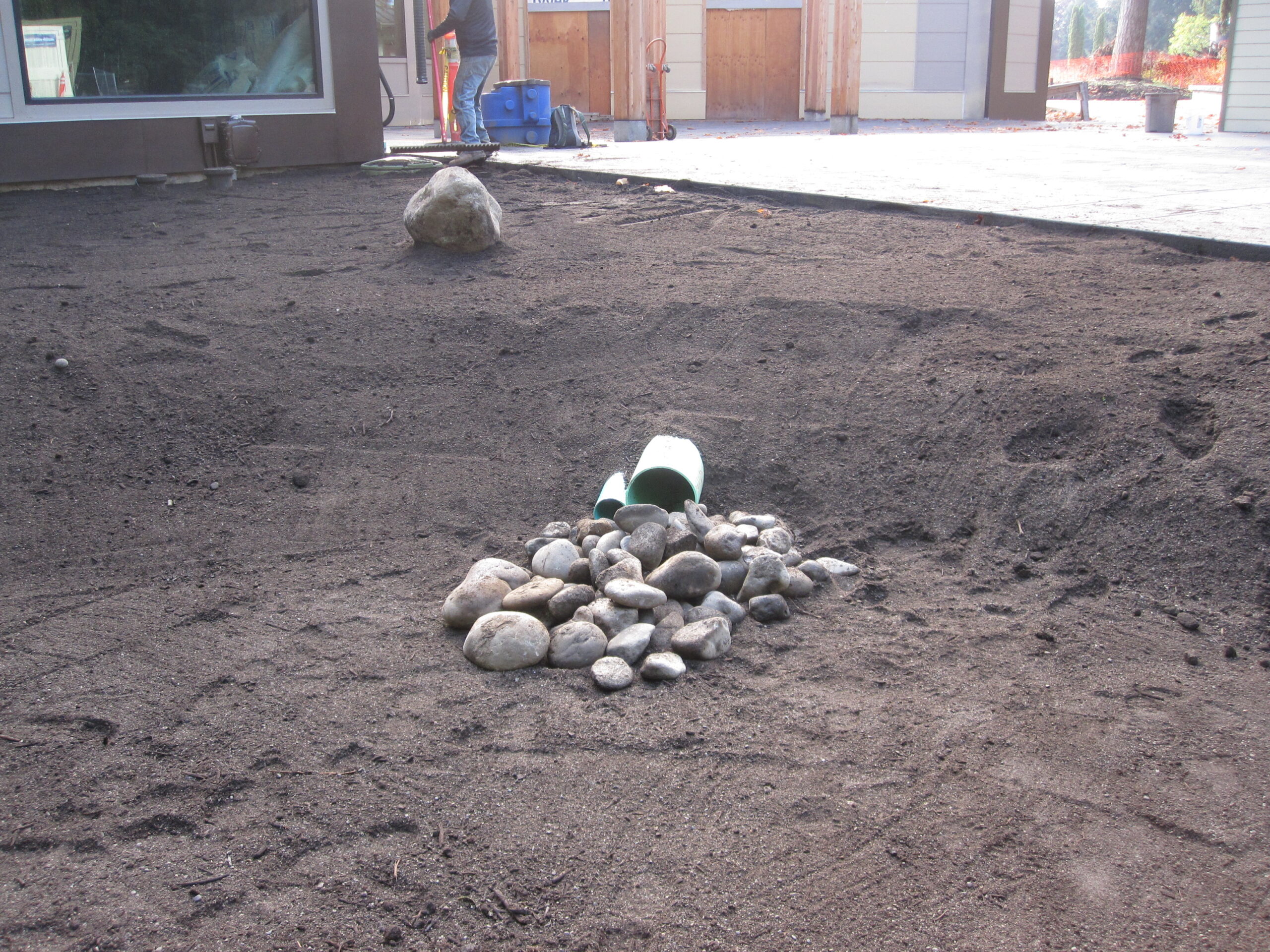

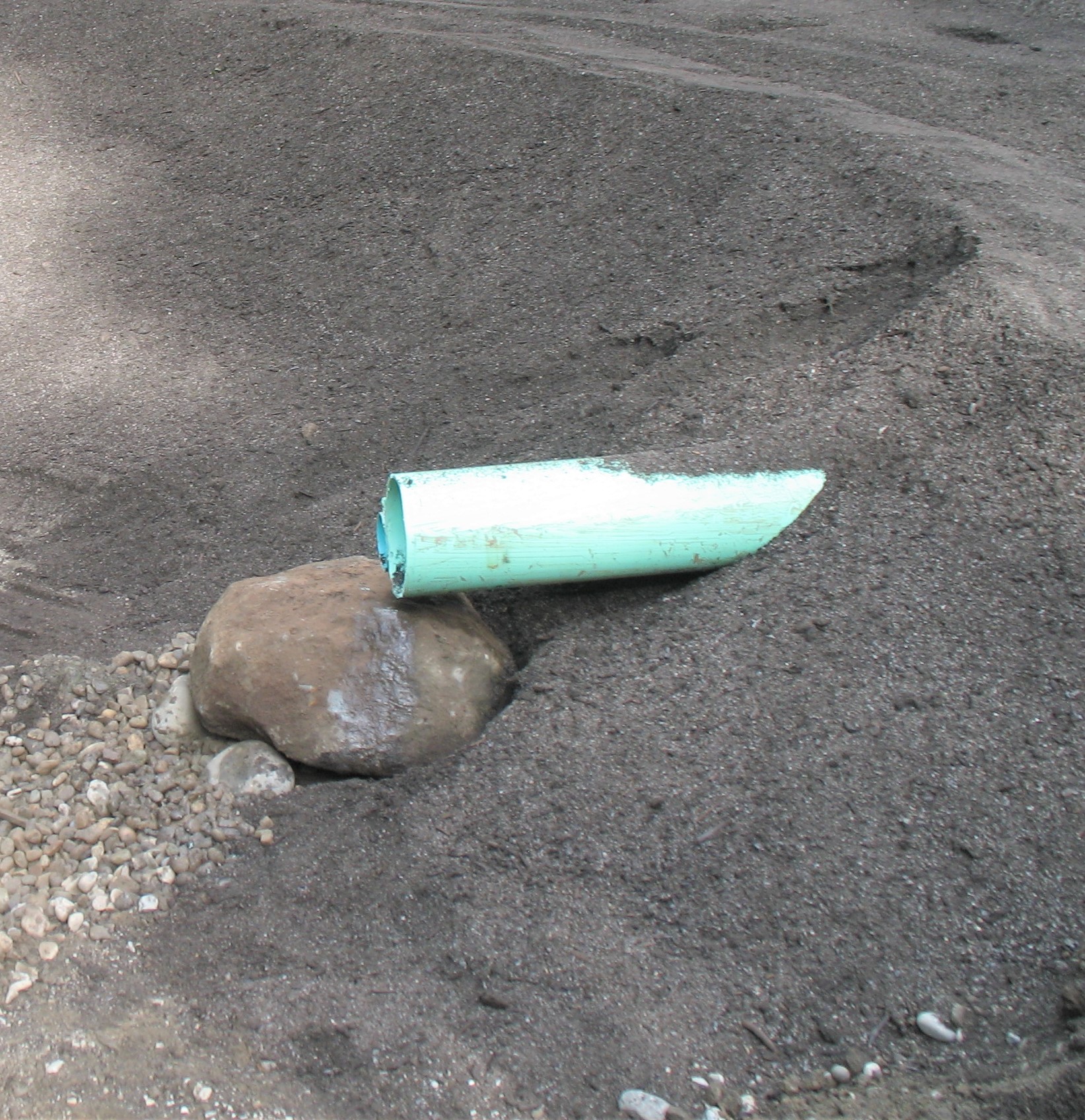

Inflow pipe cut back and supported with rock

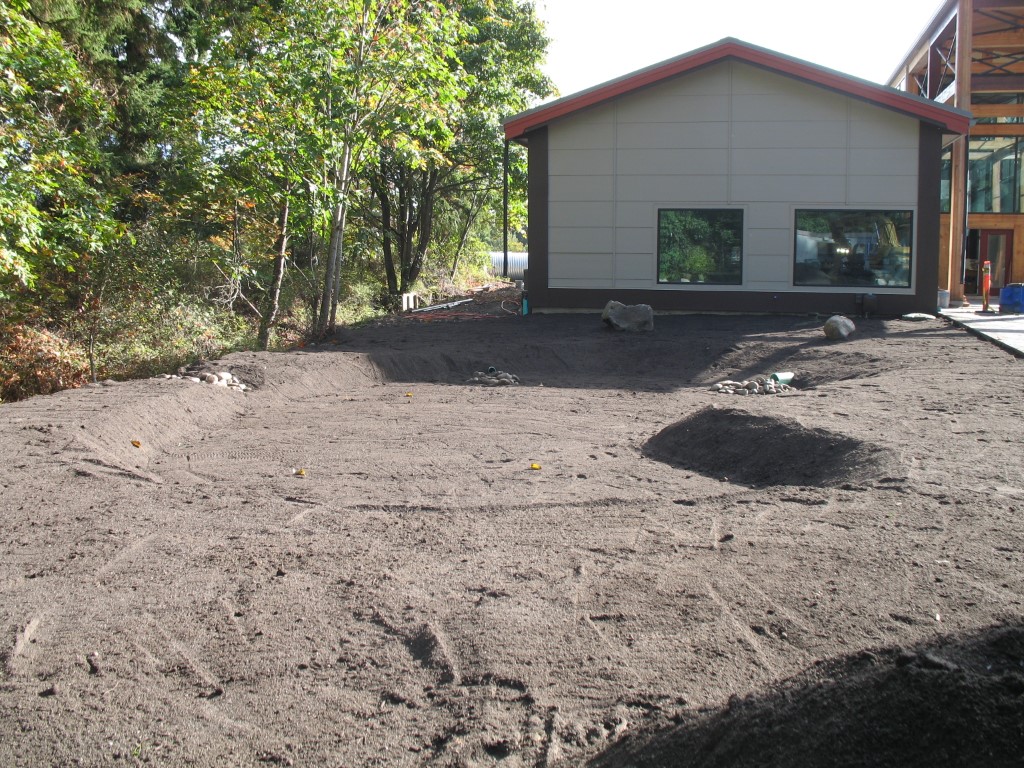

Soil mix spread over entire area, 18 inches deep in the rain garden depression

Rock are placed around inflow areas to dissipate flow

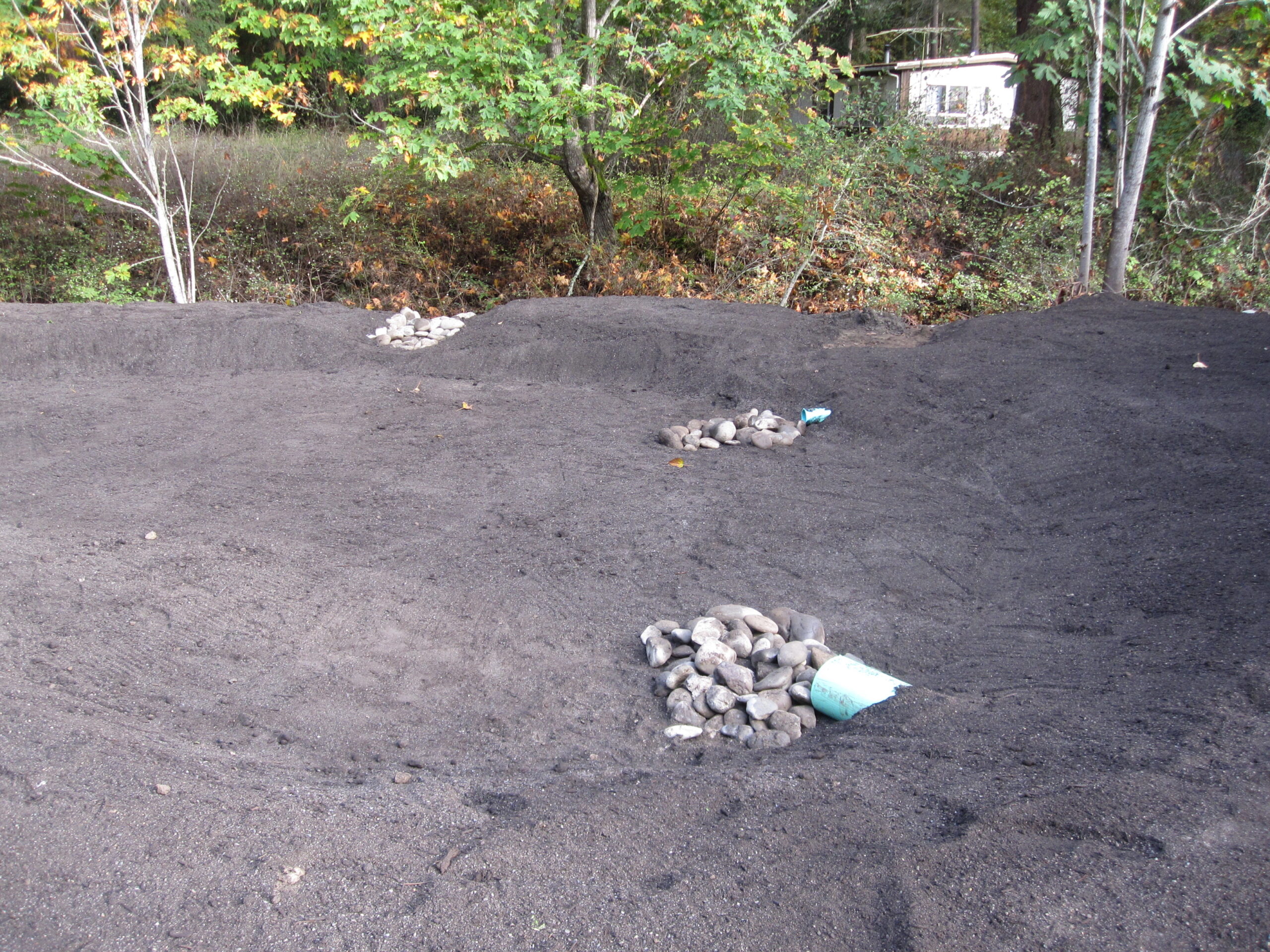

View of two inflows and overflow prior to planting

Planting and Mulching

1,075 plants, two days, and 50 volunteers! Instant garden!

In early October, with the help of a team of 50 volunteers, the planting went quickly. After planting, volunteers placed layer mulch three to four inches deep to reduce weeds and prevent erosion.

A variety of small trees, shrubs, groundcovers, and grasses suitable for a sunny location were selected. Zone 1, the infiltration zone at the bottom of the rain garden, contains plants able to withstand being underwater for short periods of time while still being drought tolerant. Zone 2, along the garden sides, has plants that can tolerate occasional standing water. And the Zone 3 surrounding area is populated with native and ornamental water-wise plants.

After planting, the entire area was mulched with bark chips to a depth of three to four inches, for weed reduction and moisture retention. The mulch works with the compost in the soil mix and the plants to remove contaminants, infiltrate water, and provide other ecosystem and aesthetic benefits.

Because increasing habitat for birds and insects was an important goal for the garden, moss covered logs, snags, rocks, bird feeders, and a water feature were added. The garden can be viewed from both outside and inside the building in a dedicated wildlife viewing room.

Plants in Zone 1 and 2

Zone 1 – Infiltration zone (bottom)

Alpine Spirea
Henderson’s Checkermallow
Slough Sedge
Small-fruited Bulrush
Spreading Rush

Zone 2 – Side slopes

Creeping Raspberry
Douglas Iris
Dwarf Tall Oregon-grape
Orange Sedge
Pacific Ninebark
Privet Honeysuckle
Tall Oregon-grape
Tufted Hairgrass

Fifty-six species were planted. View and download the plant list.

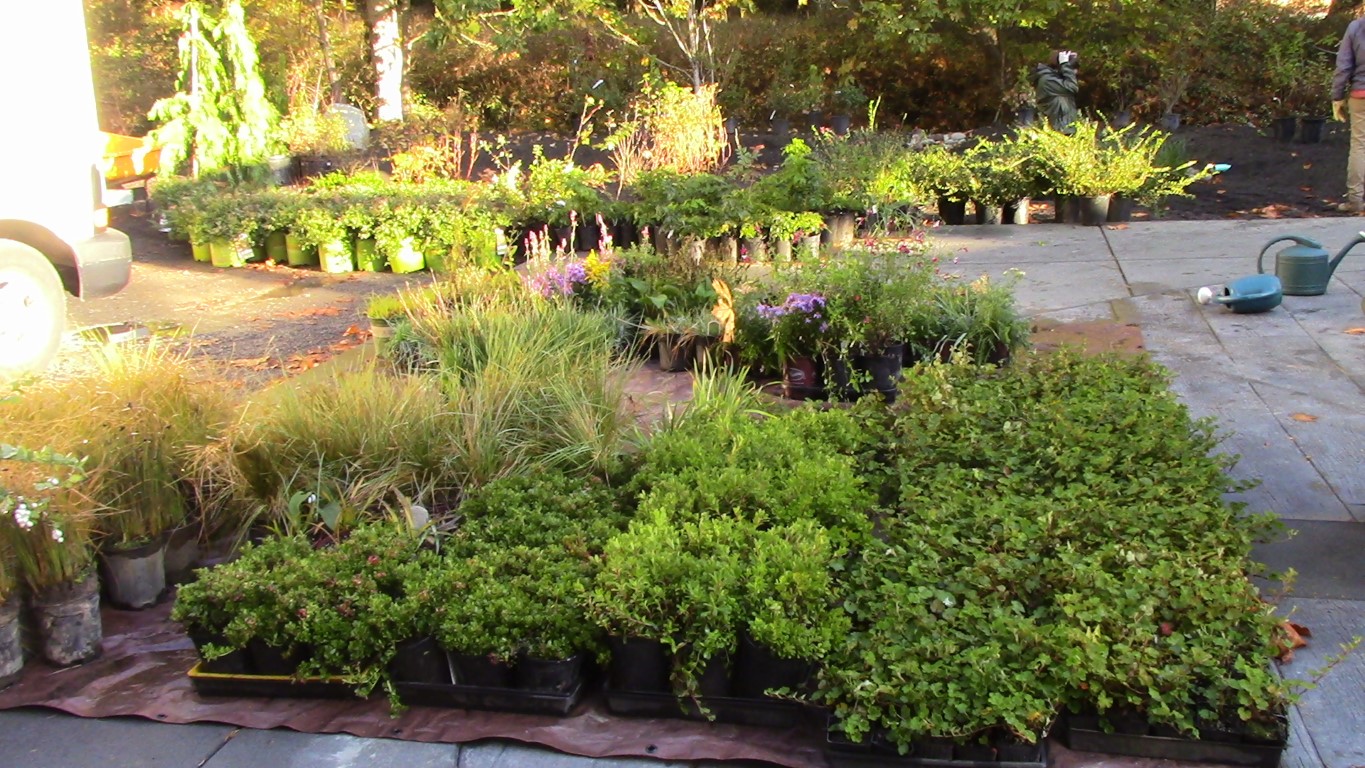

Plants arrive – over 1,000

Tools at the ready

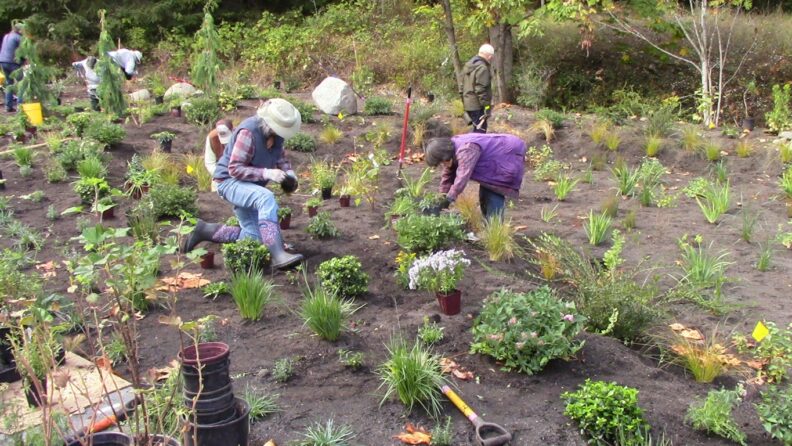

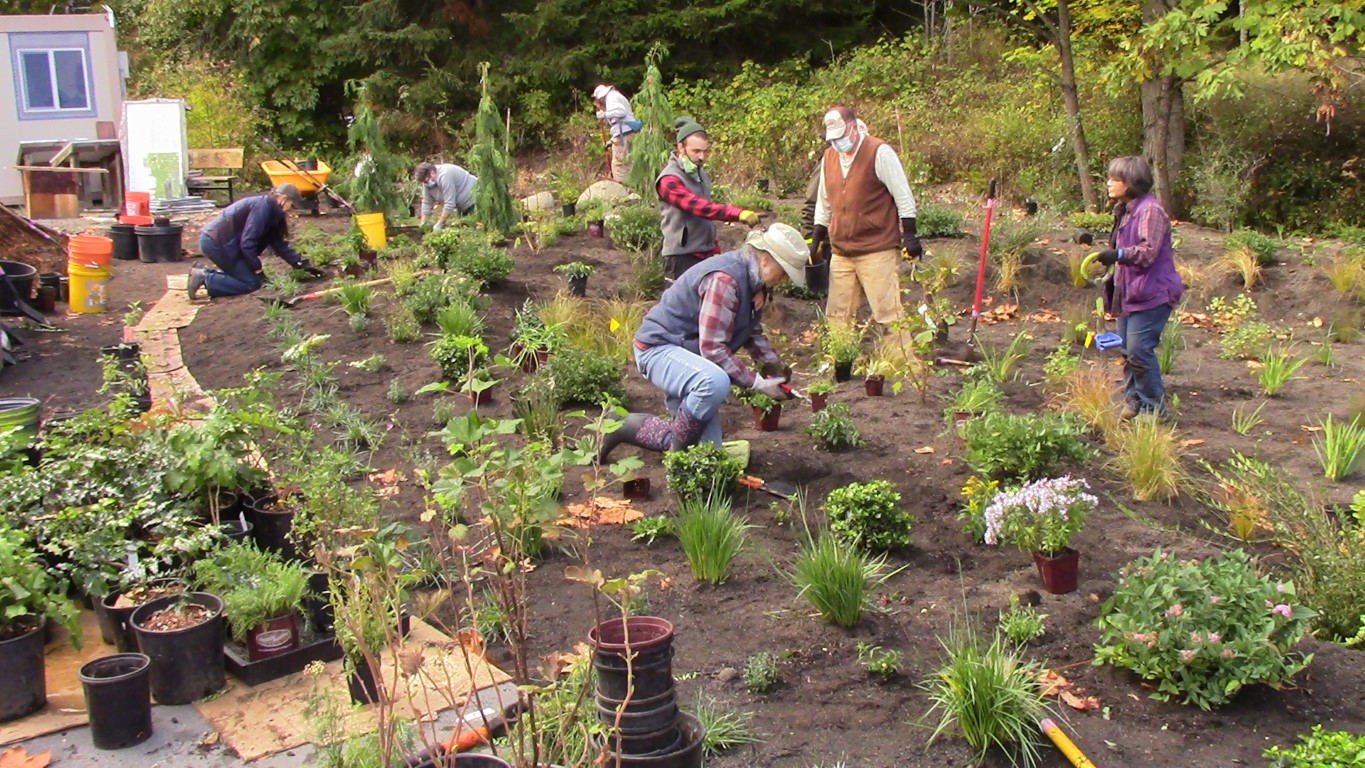

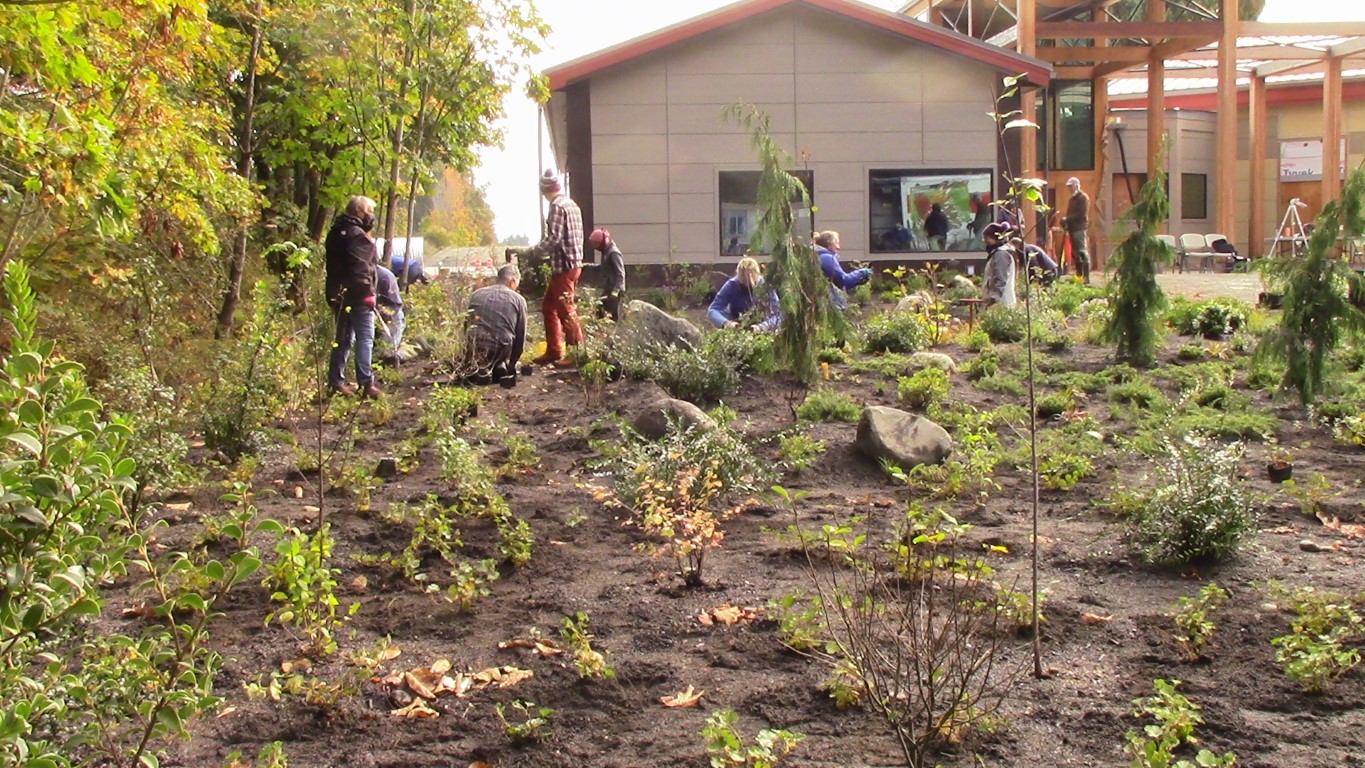

Volunteers arrive and get to work

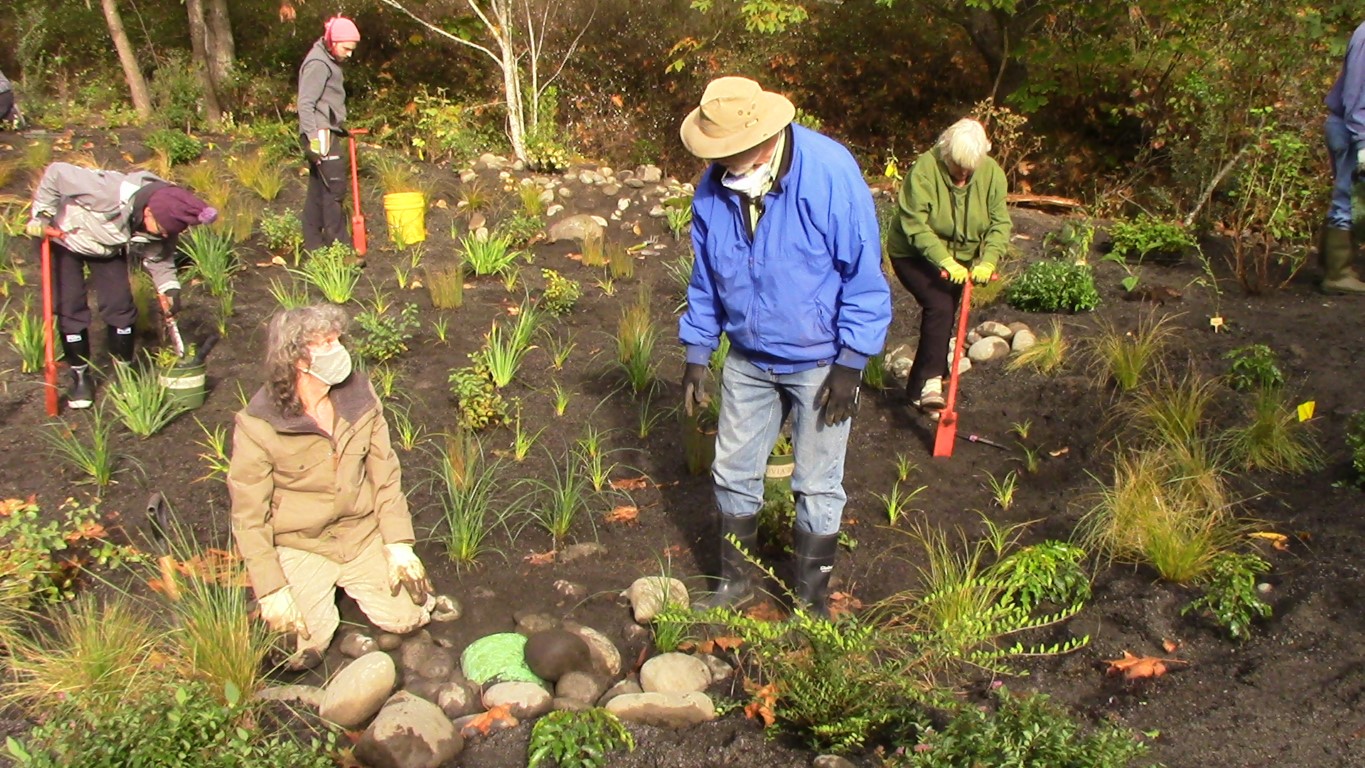

Rocking the inflows and overflow

Planting is done

Mulching begins

Watering is important for the first two years. Courtesy WSU Extension.

Maintenance

A rain garden, like any garden, needs maintenance. Volunteers will ensure the garden is adequately watered for the first few years to establish plants, perform general weeding, and check that the inlets and overflow are clear of debris.

Build your Own

For information on how to build your own raingarden, please visit our Rain garden resources page.

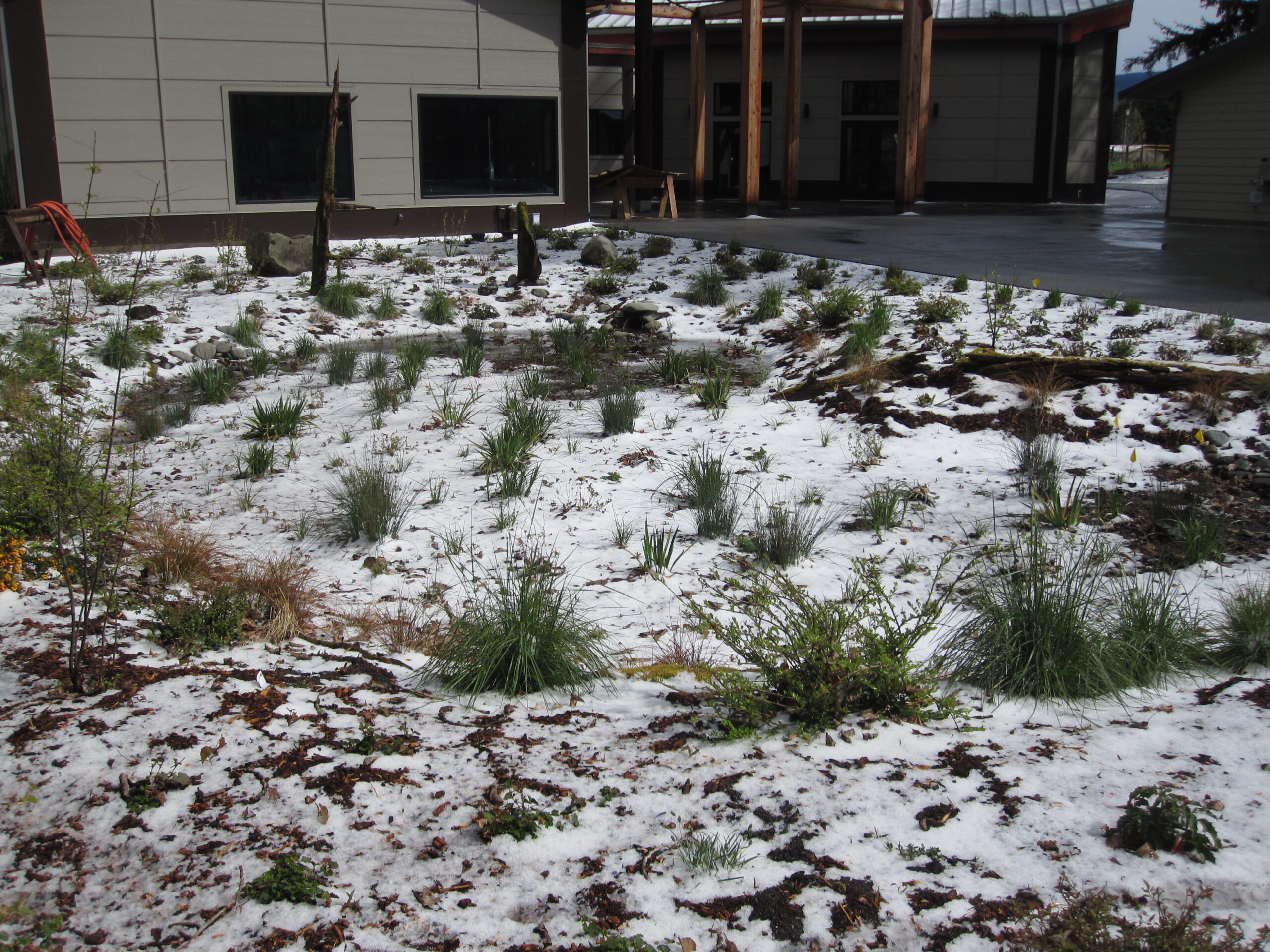

After hail storm April 2022
